Machining Cases

Case Studies

Real parts machined by DELI Precision, with materials, sizes and tolerances.

Parts

Machined Parts with Real Specs

All photos below are real parts from our shop. No stock photos, no AI images.

SCM440 alloy steel multi-port part Ø23.75×66.04 mm on the customer drawing
Alloy Steel

SCM440 Multi-Port Part from Customer Drawing

SCM440 chrome-moly steel, Ø23.75 × 66.04 mm, shown on its drawing. The angled cross-ports and side slots are turn-milled.

SCM440Ø23.75×66.04Turn-MillCross-Ports
SUS630 stainless stepped stem Ø17.15×55.6 mm
Stainless

SUS630 Stepped Stem

SUS630 (17-4PH) solution-treated stainless, Ø17.15 × 55.6 mm, turn-milled, with a disc head and a slotted end.

SUS630Ø17.15×55.6Solution-TreatedTurn-Mill
SCM415 threaded body Ø29×97.7 mm with side holes and wrench flats
Alloy Steel

SCM415 Threaded Body with H7 Bore

SCM415, Ø29 × 97.7 mm. Internal and external threads, side holes, wrench flats, a front Ø10 H7 bore 23 mm long and a 3.5 mm internal groove, all completed in one setup.

SCM415Ø29×97.7Ø10 H7One Setup
Two SCM440 sleeves Ø30×38.1 mm with 41° face bosses, heat-treated HRC55
Alloy Steel

SCM440 Castellated Sleeve, HRC55

SCM440, Ø30.0 × 38.1 mm. Four 41° face bosses and two Ø3.95 ±0.05 back-side grooves, heat-treated to HRC55 ready for grinding.

SCM440Ø30×38.1HRC55±0.05
SCM440 bushing Ø24.1×34 mm, tempered HRC28, bore tolerance 0.02 mm
Alloy Steel

SCM440 Bushing, 0.02 mm Bore Tolerance

SCM440 quenched & tempered to HRC28 before machining, Ø24.1 × 34 mm, bore tolerance 0.02 mm.

SCM440HRC28Ø24.1×34Bore 0.02 mm
SUS440C stainless shaft Ø17×123 mm heat-treated HRC60
Stainless

SUS440C Shaft, HRC60

SUS440C stainless, Ø17.0 × 123 mm, heat-treated to HRC60.

SUS440CØ17×123HRC60Heat Treated
316LVM slender pin Ø1.6×325.1 mm on a vision measuring stage
Stainless

316LVM Slender Pin, Ø1.6 × 325 mm

316LVM stainless, Ø1.6 × 325.1 mm, bar-fed from Ø1.6 × 2.2 m bar, for a length-to-diameter ratio above 200:1. Shown on a vision measuring stage.

316LVMØ1.6×325.1>200:1Bar-Fed
SUS304 part Ø16×16 mm with Ø0.4 mm through-hole, held at the machine
Stainless

SUS304 Part with Ø0.4 mm Through-Hole

SUS304, Ø16.0 × 16.0 mm with a Ø0.4 mm through-hole 2.0 mm deep. Photographed at the machine.

SUS304Ø16×16Ø0.4 hole
Two SUS304 parts Ø12×14 mm with 30° tapered bores at both ends
Stainless

SUS304 Double 30° Taper Bore

SUS304, Ø12 × 14 mm with 30° tapered bores at both ends.

SUS304Ø12×1430° Taper
S45C pin Ø8×34.6 mm with punched T15 Torx recess standing on its drawing
Carbon Steel

S45C Pin with T15 Torx Recess

S45C medium-carbon steel, Ø8 × 34.6 mm with a punched T15 Torx recess.

S45CØ8×34.6T15 Torx
Pile of C1100 copper micro parts Ø2.5×2.5 mm next to a pencil tip
Copper

C1100 Copper Micro Part, Ø2.5 mm

C1100 copper, Ø2.5 × 2.5 mm with a 1 mm center hole, shown next to a pencil tip for scale.

C1100Ø2.5×2.5Ø1 center hole
Batch of SKD11 tool steel pins Ø6×16 mm heat-treated HRC60
Tool Steel

SKD11 Pins, HRC60

SKD11 tool steel, Ø6 × 16 mm, heat-treated to HRC60.

SKD11Ø6×16HRC60
2.5D vision inspection equipment showing tolerance pass
Quality Control

2.5D Vision Inspection

Parts are pulled at scheduled intervals during production and measured on a 2.5D vision system. Actual values are checked against the tolerance band and each pass or fail is logged.

Scheduled Sampling2.5D VisionLogged
Stainless steel coupler body with external thread, cross slot and stepped bore
Hydraulic / Fluid

Stainless Connector / Coupler Body

Stainless coupler body with external thread, cross slot and a stepped through-bore, turned, milled and threaded in a single setup.

StainlessThreadingMilled SlotStepped Bore
Batch of turned stainless steel fittings from bar-fed production
Volume Production

Volume Turned Fittings

Bar-fed automatic production of stainless fittings, with thread, hex and profile checked by scheduled sampling during the run.

Bar-Fed500+ pcsStainlessThreaded
Knurled control knob with engraved index marks and internal thread
Hardware

Knurled Control Knob

Thumb knob with crisp diamond knurl, engraved index marks and an internal thread.

KnurledEngravedThreaded
C1100 copper micro part with Ø2.0ר1.5 flat-bottom blind hole
Electronics

C1100 Copper Micro Part

Bar-fed micro turning of C1100 copper parts featuring a Ø2.0 × Ø1.5 flat-bottom blind hole, made in volume for electrical and contact components.

C1100 CopperØ2.0ר1.5Flat-Bottom Blind HoleHigh Volume

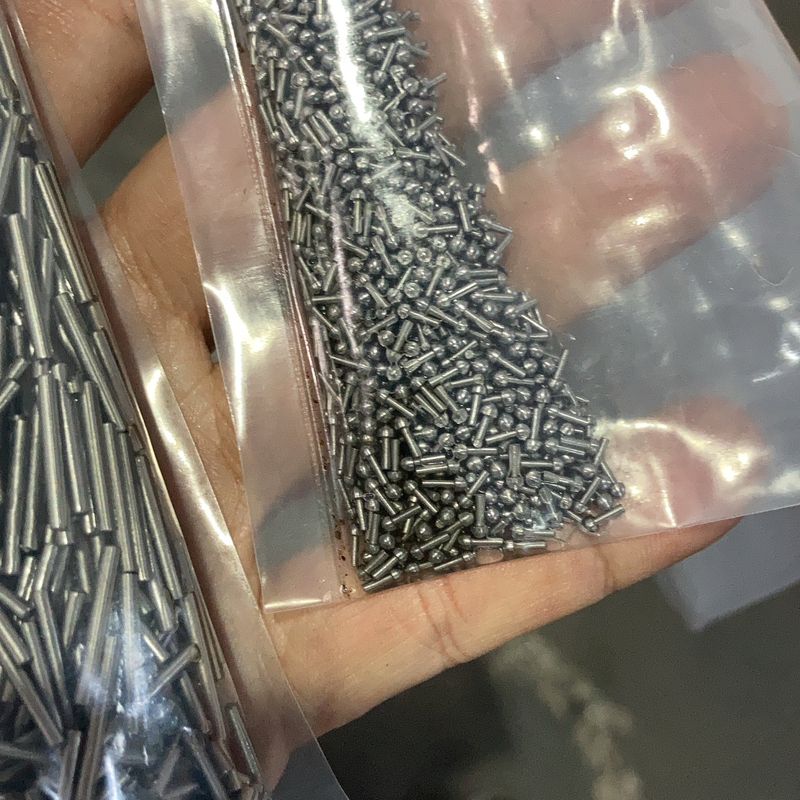

High-volume micro turned components
Micro Parts

Micro Turned Components

Small-diameter parts with threads and bores, turned from bar in volume.

Micro ØBar-FedHigh Volume
Video

Real Parts on Video

Short phone clips of real parts from our shop, so you can see the details before you send a drawing.

SCM439 Ø16.4×31.4 mm · turn-milled in one setup
Spec Log

More Jobs from Our Shop

Real jobs also posted on our Google Business profile. Material, size and key features are listed exactly as produced.

SCM439Ø16.4 × 31.4 mmTurn-milled in one setup (see video above)
S7 / A681Ø13 × 180 mmTool steel · roundness 0.01 mm
6061-T6Ø29 × 52 mm1 mm single wall + int/ext threads
6061-T6Ø31 × 5 mm1.2 mm single-wall thickness
6061-T6Ø28.4 × 15.8 mmHoles on both faces · angled chamfers
N/AØ5.8 boreInternal groove 3.5 mm wide × 28.4 mm deep

Don't see your material or spec? We machine stainless, tool steel, alloy steel, titanium, aluminum, brass and copper. Send us your drawing.
